Table presses from 24 to 34 t

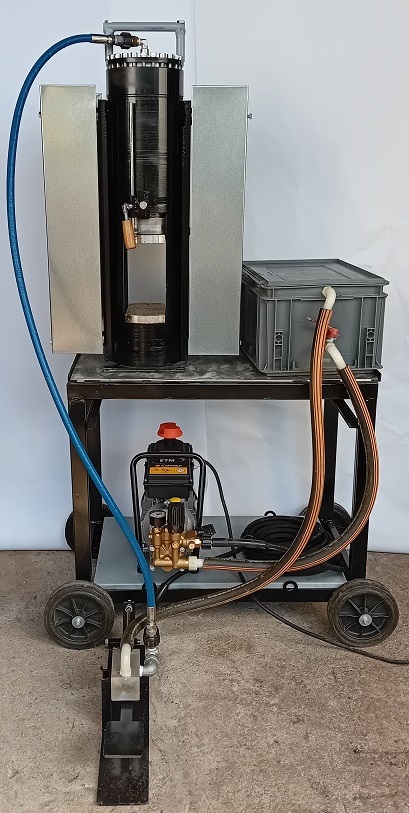

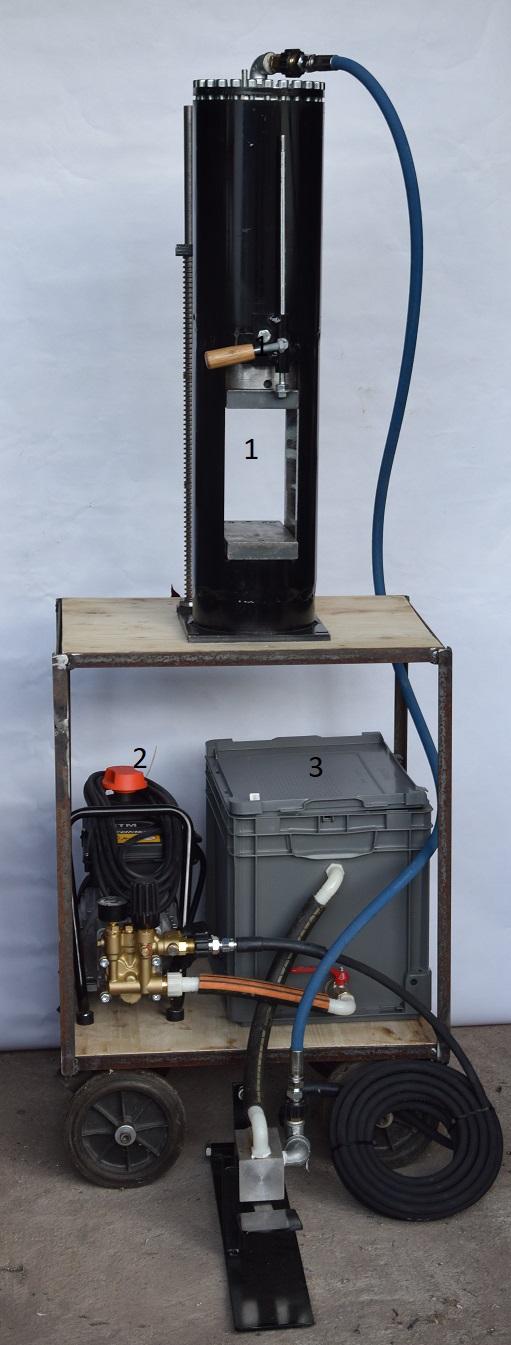

Hobby blacksmiths usually have small rooms and our table presses are designed for this. The press in the picture delivers between 24 t and 34 t, depending on the pressure output of the high-pressure cleaner drive. The 24 t at 140 bar of the washing device, 34 t at 200 bar. You read that correctly, it is powered by standard high-pressure cleaners and only water circulates in a closed circuit, the washing function is retained. So if you already have a high-pressure cleaner with sufficient power then there is no need to buy one from us or elsewhere. With light current we offer the ETM 150 xTS 10/150 GX 230V50 HZ from the manufacturer Comet, which delivers 140 bar pressure and 10 l/min delivery rate and the press therefore presses 24 t. Pressing speed = 1 cm/sec. With power current, also known as heavy current, we offer the high-pressure cleaner from Comet Type K 250 with 5 kW connected load, 210 bar and 11 l/min delivery rate. The ton output is then 34 t and the pressing speed is 1.1 cm /sec. . The pressing chamber, sufficient for forging Damascus knives, is 10 cm wide and 17 cm high. What sets us apart from our competitors. High-pressure cleaners are good for dust-free sandblasting. Our high-pressure cleaners come with this accessory. Affordable price Instead of oil, only water circulates in the veins of the press. The washing function is retained. Small space requirement and low weight. Maintenance-free. The table is not intended for sale. Knife makers make it themselves or already have one. 24 t press ready for use.

For blacksmiths

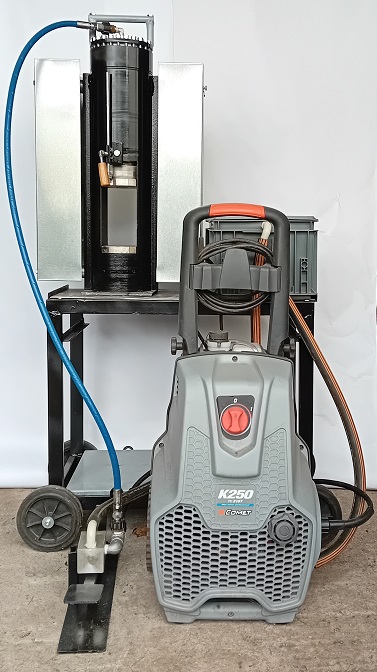

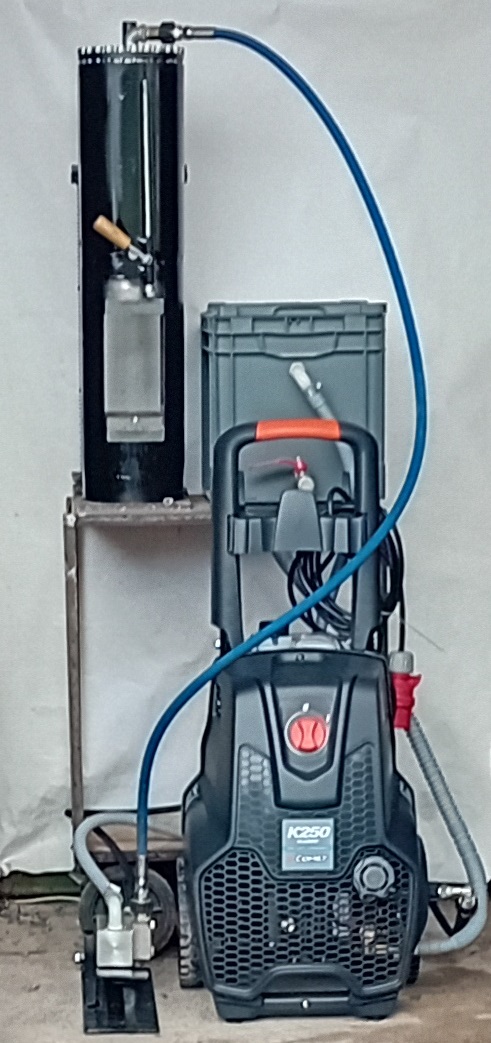

The 34 t press

The difference to the 24 t press is due to the high pressure cleaner K 250 with 200 bar

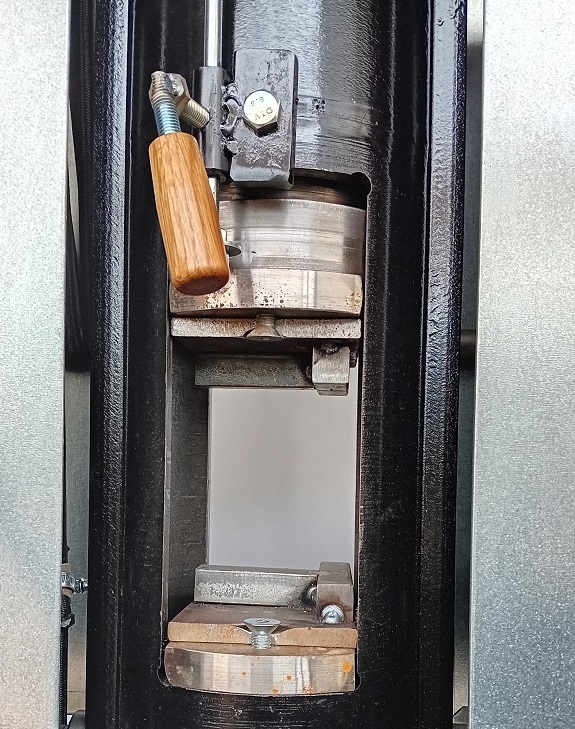

Photo of the press room

 Press room with mounted dies for forging knives. The wooden handle on the left in the picture serves to limit the return stroke. Dimensions: Width 102 mm and height 17 cm

We offer what our competitors with oil hydraulics cannot: sandblasting

.In the picture to the right of the spray lance you can see the sandblasting accessories.

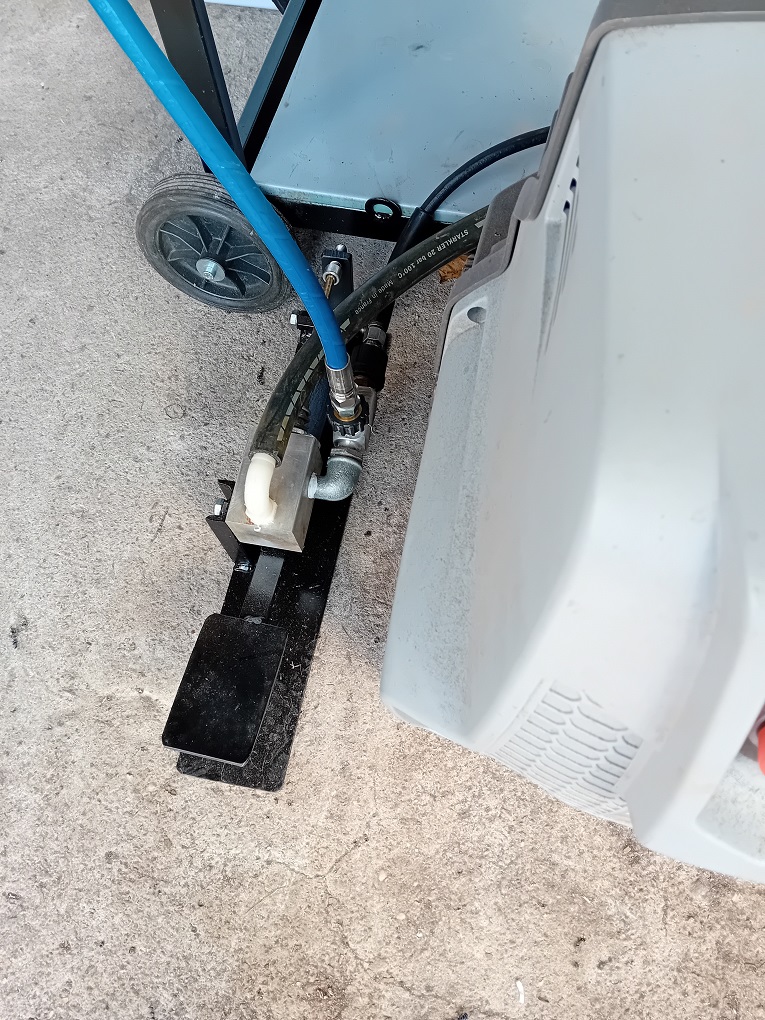

Sensitive foot pedal control

Usually, hydraulic presses have electromechanical foot pedal controls with a limit switch. Our hydraulic forging presses have no electrical circuit. They are controlled purely hydraulically without a limit switch. A suction valve with no moving parts lets the water either flow into the cylinder or sucks it back. Depending on whether you press the pedal down and the two-way seat valve closes or opens, the pressure in the system increases or decreases. If the system pressure is higher, the water flows into the cylinder; conversely, it is sucked back and raises the press ram. The only moving part in the control system is the valve. The two-way valve is the simplest type of valve. It requires no maintenance. And importantly: what isn't there can't break.
